LSAW pipe
LSAW pipe is referred to longitudinal submerged arc welded pipe which is made of hot rolled steel plate or coils. LSAW tube always goes to the big-sized diameter welded pipe, which can’t be processed by electric resistance welding technology. Furthermore, the mechanical properties of the LSAW pipe base metal and welded metal are tested and the results are in accordance with the corresponding pipe specification API SPEC 5L, which show that domestic LSAW steel pipe can be used for oil and gas pipelines. Moreover, LSAW steel pipes manufacturing technology process adopts foreign advanced technology.
Name: LSAW Pipe
Steel Grades:
ASTM A53: Gr. A, Gr. B, Gr. C, Gr. D;
API 5L: A, B, X42, X46, X52, X56, X60, X65, X70
EN10217: S355JRH, ST44, ST37, ST52
Standard: API 5L, ASTM A53, EN10217, ASTM A672, SY/T5768-2006
Specifications: Outer Diameter: 219mm-1820mm; Wall Thickness: 5.0mm-50mm; Length: 6mtr-18mtr
Applications: LSAW steel pipe is applied in low pressure liquid delivery such as water, gas and oil.

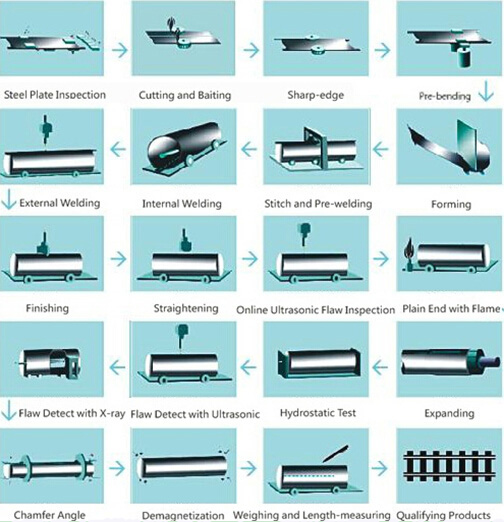

LSAW Pipe Manufacturing Process:
LSAW Steel Pipe Dimension
Out Diameter | Wall Thickness(mm) | ||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Inch | mm | 6.4 | 7.1 | 7.9 | 9.53 | 12.7 | 14.3 | 15.9 | 19.1 | 22.2 | 25.4 | 28.6 | 31.8 | 34.9 | 38.1 | 41.3 | 44.5 |
16 | 406.4 | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | |||||
18 | 457 | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ||||
20 | 508 | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ||||
22 | 559 | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ||||
24 | 610 | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | |
26 | 660 | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ||
28 | 711 | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ||
30 | 762 | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ||||
32 | 813 | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ||||
34 | 864 | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ||||
36 | 914 | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ||||
38 | 965 | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | |||
40 | 1016 | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | |||
42 | 1067 | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ||||
44 | 1118 | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ||||
46 | 1168 | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ||||
48 | 1219 | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ||||
52 | 1321 | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ||||
56 | 1422 | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ||||
60 | 1524 | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ||||
64 | 1626 | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● |
LSAW Pipe API 5L PSL 1 Chemical composition and mechanical properties:
Standard | Steel grade | Chemical Compositions(%) | Mechanical Properties | ||||
---|---|---|---|---|---|---|---|
C(max) | Mn(max) | P(max) | S(max) | Tensile strength(Mpa) | Yield strength(Mpa) | ||
API SPEC 5L | B | 0.28 | 1.20 | 0.030 | 0.030 | 414 | 241 |
X42 | 0.28 | 1.30 | 0.030 | 0.030 | 414 | 290 | |
X46 | 0.28 | 1.40 | 0.030 | 0.030 | 434 | 317 | |
X52 | 0.28 | 1.40 | 0.030 | 0.030 | 455 | 359 | |
X56 | 0.28 | 1.40 | 0.030 | 0.030 | 490 | 386 | |
X60 | 0.28 | 1.40 | 0.030 | 0.030 | 517 | 414 | |
X65 | 0.28 | 1.40 | 0.030 | 0.030 | 531 | 448 | |
X70 | 0.28 | 1.40 | 0.030 | 0.030 | 565 | 483 |
LSAW Pipe API 5L PSL 2 Chemical Composition and Mechanical Properties:
Standard | Steel grade | Chemical Composition(%) | Mechanical Properties | ||||
---|---|---|---|---|---|---|---|
C(max) | Mn(max) | P(max) | S(max) | Tensile strength | Yield strength | ||
API SPEC 5L | B | 0.24 | 1.20 | 0.025 | 0.015 | 414-758 | 241-758 |
X42 | 0.24 | 1.30 | 0.025 | 0.015 | 414-758 | 290-758 | |
X46 | 0.24 | 1.40 | 0.025 | 0.015 | 434-758 | 317-758 | |
X52 | 0.24 | 1.40 | 0.025 | 0.015 | 455-758 | 359-758 | |
X56 | 0.24 | 1.40 | 0.025 | 0.015 | 490-758 | 386-758 | |
X60 | 0.24 | 1.40 | 0.025 | 0.015 | 517-758 | 414-758 | |
X65 | 0.24 | 1.40 | 0.025 | 0.015 | 531-758 | 448-758 | |
X70 | 0.24 | 1.40 | 0.025 | 0.015 | 565-758 | 483-758 |
Specializing in various kinds of LSAW pipe production and supplying, Ourway steel subsidiary of AGICO is a professional LSAW manufacturer and supplier in the international trade. We keep enough in stock in the warehouse every month. Besides, we keep a good relationship with every big steel factory in China, so we can guarantee the delivery time and competitive prices for customers. Therefore, if you have any inquiry on LSAW pipe, please don‘t hesitate to contact us by e-mail or ring us!
X70 (Ф712*15.9)
X60 (Ф762*17.5)
X70 (Ф753*17.9)
X52 (Ф912.8*21.3)
API 5L LSAW Pipe
X52 (Ф812.8*19.1)
