pipe elbow
Pipe elbow is the pipe fitting installed between two lengths of pipe or tubing to allow a change of direction, usually a 90° or 45° angle, though 22.5° elbows are also made. The pipe elbows are often distinguished by connection ends. The pipe elbow is be machined for butt welding or threaded, therefore, pipe elbow is consisted of butt weld, thread elbow, socket elbow and other series. The steel material is selected depending on the application use like high temperature, sanitary fitting, regular industrial use etc.
Name: Pipe Elbow
Size range: 1/2 to 56 inches (DN 15 to DN 1,400mm), 22.5 Deg, 45 Deg, 90 Deg, 180 Deg
Manufacturing standards: ANSI, ISO, JIS and DIN
Process: butt welding, seamless, threaded, or socket
Short Radius Pipe Elbow

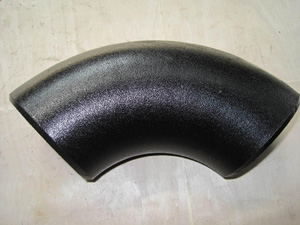

Long Radius Pipe Elbow

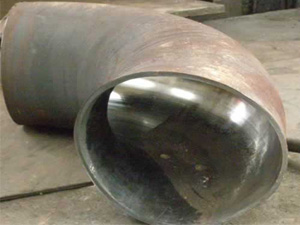

Large Diameter Pipe Elbow

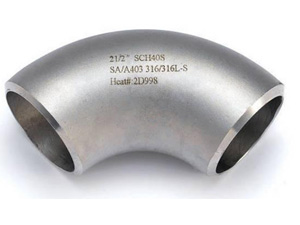

Stainless Steel Pipe Elbow
Main Materials:
Carbon steel: ASTM A234 WPB, WPC, ASTM A420 WPL1, WPL3, WPL6, WPHY-42/46/52/56/60/65/70
Stainless steel: ASTM A403 WP304/304L, WP316/316/L, WP321, WP347 and WPS31254
Alloy steel: ASTM A234 WP1/WP12/WP11/WP22/WP5/WP7/WP9/WP91
Low temperature steel: ASTM/ASME A402 WPL3-WPL 6
High performance steel: ASTM/ASME A860 WPHY 42-46-52-60-65-70
Pipe Elbows Specifications:
Nominal pipe size |
Outside Diameter at Bevel |
Center to End | Center to Center | Back to Faces | ||||||
---|---|---|---|---|---|---|---|---|---|---|
45°Elbows | 90°Elbows | 180°Return | ||||||||
H | F | P | K | |||||||
DN |
INCH |
Series A | Series B | LR | LR | SR | LR | SR | LR | SR |
15 | 1/2 | 21.3 | 18 | 16 | 38 | - | 76 | - | 48 | - |
20 | 3/4 | 26.9 | 25 | 16 | 38 | - | 76 | - | 51 | - |
25 | 1 | 33.7 | 32 | 16 | 38 | 25 | 76 | 51 | 56 | 41 |
32 | 11/4 | 42.4 | 38 | 20 | 48 | 32 | 95 | 64 | 70 | 52 |
40 | 11/2 | 48.3 | 45 | 24 | 57 | 38 | 114 | 76 | 83 | 62 |
50 | 2 | 60.3 | 57 | 32 | 76 | 51 | 152 | 102 | 106 | 81 |
65 | 21/2 | 76.1(73) | 76 | 40 | 95 | 64 | 191 | 127 | 132 | 100 |
80 | 3 | 88.9 | 89 | 47 | 114 | 76 | 229 | 152 | 159 | 121 |
90 | 31/2 | 101.6 | - | 55 | 133 | 89 | 267 | 178 | 184 | 140 |
100 | 4 | 114.3 | 108 | 63 | 152 | 102 | 305 | 203 | 210 | 159 |
125 | 5 | 139.7 | 133 | 79 | 190 | 127 | 381 | 254 | 262 | 197 |
150 | 6 | 168.3 | 159 | 95 | 229 | 152 | 457 | 305 | 313 | 237 |
200 | 8 | 219.1 | 219 | 126 | 305 | 203 | 610 | 406 | 414 | 313 |
250 | 10 | 273.0 | 273 | 158 | 381 | 254 | 762 | 508 | 518 | 391 |
300 | 12 | 323.9 | 325 | 189 | 457 | 305 | 914 | 610 | 619 | 467 |
350 | 14 | 355.6 | 377 | 221 | 533 | 356 | 1067 | 711 | 711 | 533 |
400 | 16 | 406.4 | 426 | 253 | 610 | 406 | 1219 | 813 | 813 | 610 |
450 | 18 | 457.2 | 478 | 284 | 686 | 457 | 1372 | 914 | 914 | 686 |
500 | 20 | 508.0 | 529 | 316 | 762 | 508 | 1524 | 1016 | 1016 | 762 |
550 | 22 | 559 | - | 347 | 838 | 559 |
Note: 1. Do not use the figures in the parenthesis as far as possible 2. Please first select A series. |
|||
600 | 24 | 610 | 630 | 379 | 914 | 610 | ||||
650 | 26 | 660 | - | 410 | 991 | 660 | ||||
700 | 28 | 711 | 720 | 442 | 1067 | 711 | ||||
750 | 30 | 762 | - | 473 | 1143 | 762 | ||||
800 | 32 | 813 | 820 | 505 | 1219 | 813 | ||||
850 | 34 | 864 | - | 537 | 1295 | 864 | ||||
900 | 36 | 914 | 920 | 568 | 1372 | 914 | ||||
950 | 38 | 965 | - | 600 | 1448 | 965 | ||||
1000 | 40 | 1016 | 1020 | 631 | 1524 | 1016 | ||||
1050 | 42 | 1067 | - | 663 | 1600 | 1067 | ||||
1100 | 44 | 1118 | 1120 | 694 | 1676 | 1118 | ||||
1150 | 46 | 1168 | - | 726 | 1753 | 1168 | ||||
1200 | 48 | 1220 | 1220 | 758 | 1829 | 1219 |
Specializing in various kinds of OCTG pipes production and supplying, Ourway steel subsidiary of AGICO is a professional pipe elbow manufacturer and supplier in the international trade. We keep enough in stock in the warehouse every month. Besides, we keep a good relationship with every big steel factory in China, so we can guarantee the delivery time and competitive prices for customers. Therefore, if you have any inquiry on pipe elbows, please don‘t hesitate to contact us by e-mail or ring us!
