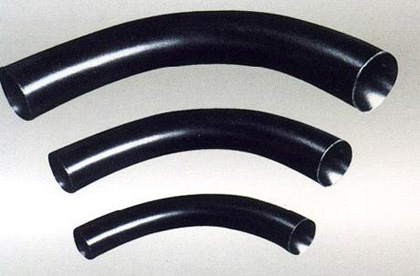

pipe bending
The pipe bending is also used to change the direction of run of the pipe. Pipe bend can match long distance transportation requirements, it is ordinary that bend dimension according to customers’ design or demands. AGICO supplies wide range of bending fittings, which are manufactured and processed by higher grade raw material and advanced technologies with advanced bending machines.
API 5L Gr.B pipe bending
API 5L X52 pipe bending
API 5L X60 pipe bending
High Pressure Pipe Bending
Applications of Pipe Bending: In particular conveying oil, petroleum, natural gas pipeline and water etc.
Bending fitting from AGICO is broadly applied in varied industries due to its higher stress applications. It is necessary for the pipe connection in the pipeline systems. Therefore, the bending pipe is for hot sale in the market at home and abroad.
Materials:
Carbon steel: SA234 WPB, SA234 WPC,SA42 WPL6, SA42 WPL3, WP1. MSS-SP75, WPHY,WPHY 46,WPHY 52,WPHY 56,WPHY 60 etc.
Stainless steel: ASTM/ASME SA403 304,304L ,316, 316L, WP304L, 3 WP316 WP347 (H) ,WP317 (L),WP321.
Alloy steel: ASTM/ASME SA234 WP12, WP11,WP22, WP5, WP9, WP91, ASTM B361 GR.3003-6061, ASTM B366 UNS N04400 etc.
Standards:
ASME/ANSI B16.49 Factory-Made Wrought Steel Butt welding Induction Bends for Transportation and Distribution Systems
ASTM A403 Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings
JIS B2311 Universal steel butt-welding pipe fittings
JIS B2312 Steel butt-welding pipe fittings
API 5L X 60, API 5L Gr.B, API 5L X52

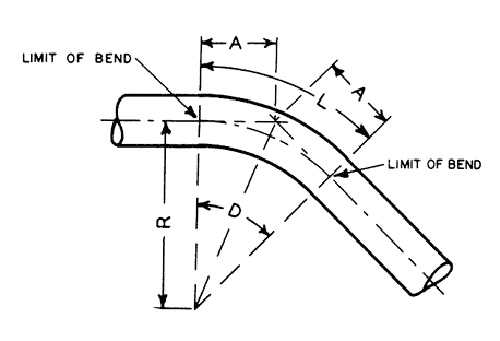

Pipe Bending Specifications:
Nominal pipe size | Outside Diameter at Bevel | Center to End | |||
---|---|---|---|---|---|
D | C | M | |||
DN | INCH | Series A | Series B | ||
15 | 1/2 | 21.3 | 18 | 25 | |
20 | 3/4 | 26.9 | 25 | 29 | |
25 | 1 | 33.7 | 32 | 38 | |
32 | 11/4 | 42.4 | 38 | 48 | |
40 | 11/2 | 48.3 | 45 | 57 | |
50 | 2 | 60.3 | 57 | 64 | |
65 | 21/2 | 76.1(73) | 76 | 76 | |
80 | 3 | 88.9 | 89 | 86 | |
90 | 31/2 | 101.6 | ― | 95 | |
100 | 4 | 114.3 | 108 | 105 | |
125 | 5 | 139.7 | 133 | 124 | |
150 | 6 | 168.3 | 159 | 143 | |
200 | 8 | 219.1 | 219 | 178 | |
250 | 10 | 273.0 | 273 | 216 | |
300 | 12 | 323.9 | 325 | 254 | |
350 | 14 | 355.6 | 377 | 279 | |
400 | 16 | 406.4 | 426 | 305 | |
450 | 18 | 457.2 | 478 | 343 | |
500 | 20 | 508.0 | 529 | 381 | |
550 | 22 | 559 | ― | 419 | |
600 | 24 | 610 | 630 | 432 | |
650 | 26 | 660 | ― | 495 | |
700 | 28 | 711 | 720 | 521 | |
750 | 30 | 762 | ― | 559 | |
800 | 32 | 813 | 820 | 597 | |
850 | 34 | 864 | ― | 635 | |
900 | 36 | 914 | 920 | 673 | |
950 | 38 | 965 | ― | 711 | |
1000 | 40 | 1016 | 1020 | 749 | |
1050 | 42 | 1067 | ― | 762 | 711 |
1100 | 44 | 1118 | 1120 | 813 | 762 |
1150 | 46 | 1168 | ― | 851 | 800 |
1200 | 48 | 1220 | 1220 | 889 | 838 |
Specializing in various kinds of OCTG pipes production and supplying, Ourway steel subsidiary of AGICO is a professional pipe bending manufacturer and supplier in the international trade. We keep enough in stock in the warehouse every month. Besides, we keep a good relationship with every big steel factory in China, so we can guarantee the delivery time and competitive prices for customers. Therefore, if you have any inquiry on pipe bending, please don‘t hesitate to contact us by e-mail or ring us!
