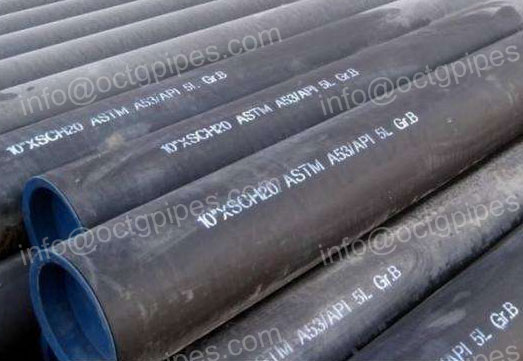

ASTM A53 structural steel pipe
Name: ASTM A53 structural carbon and alloy steel mechanical tubeDescription:
►O.D.: 6.0-180 (mm);
►W.T.: 1-30(mm); L: max 12000(mm)
►Standard: ASTM A53 (ASME SA179)
►Applications: ASTM A53 is mainly used in mechanical and high pressure applications as well as transporting steam, water, oil and natural gas for instance heat exchangers, condensers, heat transfer equipment and similar pipes.
►Specifications: diameter 10.3 to 76.2 mm; thickness: 1.2 to 12 mm; length:6 m
Structural Steel Pipes Features Specifications:
OD (mm) | Wall Thickness (mm) | |||||||||||||
2 | 2.5 | 3 | 3.5 | 4 | 4.5 | 5 | 6 | 6.5-7 | 7.5-8 | 8.5-9 | 9.5-10 | 11 | 12 | |
Φ25-Φ28 | ● | ● | ● | ● | ● | ● | ||||||||
Φ32 | ● | ● | ● | ● | ● | ● | ||||||||
Φ34-Φ36 | ● | ● | ● | ● | ● | ● | ||||||||
Φ38 | ● | ● | ● | ● | ● | ● | ||||||||
Φ40 | ● | ● | ● | ● | ● | |||||||||
Φ42 | ● | ● | ● | ● | ● | |||||||||
Φ45 | ● | ● | ● | ● | ● | ● | ||||||||
Φ48-Φ60 | ● | ● | ● | ● | ● | ● | ● | |||||||
Φ63.5 | ● | ● | ● | ● | ● | ● | ● | |||||||
Φ68-Φ73 | ● | ● | ● | ● | ● | ● | ||||||||
Φ76 | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ||||
Φ80 | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ||||
Φ83 | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ||||
Φ89 | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ||||
Φ95 | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ||||
Φ102 | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ||||
Φ108 | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ||||
Φ114 | ● | ● | ● | ● | ● | ● | ● | ● | ● | |||||
Φ121 | ● | ● | ● | ● | ● | ● | ● | ● | ● | |||||
Φ127 | ● | ● | ● | ● | ● | ● | ● | ● | ● | |||||
Φ133 | ● | ● | ● | ● | ● | ● | ● | ● | ● | |||||
Φ140 | ● | ● | ● | ● | ● | ● | ● | ● | ||||||
Φ146 | ● | ● | ● | ● | ● | ● | ● | ● | ||||||
Φ152 | ● | ● | ● | ● | ● | ● | ● | ● | ||||||
Φ159 | ● | ● | ● | ● | ● | ● | ● | ● | ||||||
Φ168 | ● | ● | ● | ● | ● | ● | ● | ● |
Seamless Carbon and Alloy Steel Mechanical Tubing
Applications: |
mechanical and high pressure applications as well as transporting steam, water, oil and natural gas for instance heat exchangers, condensers, heat transfer equipment and similar pipes. |
Size(mm): |
O.D.: 6.0∼180; W.T: 1∼30; L: max 12000 |
Grade and Chemical Composition (%):
Grade
|
C ≤ |
M ≤ |
P ≤ |
S ≤ |
Cu ≥ |
Ni ≤ |
Cr ≤ |
Mo ≤ |
V ≤ |
A |
0.25 |
0.95 |
0.05 |
0.045 |
0.40 |
0.40 |
0.40 |
0.15 |
0.08 |
B |
0.30 |
1.20 |
0.05 |
0.045 |
0.40 |
0.40 |
0.40 |
0.15 |
0.08 |
Mechanical Properties:
Grade
|
Rm Mpa Tensile Strength |
Mpa Yield Point |
Elongation |
Delivery Condition |
A |
≥330 |
≥205 |
20 |
Annealed |
B |
≥415 |
≥240 |
20 |
Annealed |
Dimensional Tolerances:
Pipe Type
|
Pipe Sizes |
Tolerances |
||
Cold Drawn |
OD |
≤48.3mm |
±0.40mm |
|
WT |
≥60.3mm |
±1%mm |
