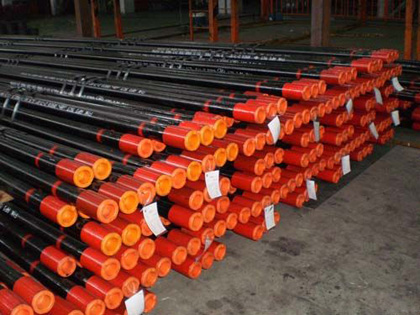

API 5CT Tubing
API 5CT tubing is a kind of octg pipe, which is used to transport crude oil or natural gas from the oil layer to surface. It can endure better pressure during oil or gas production and has smaller diameters.
Standard: API SPEC 5CT for casing and tubing
Application: Applying in extracting oil or natural gas from oil wells.
Dimension: OD 48.26-114.3mm; WT 3.18-16mm
Grade: J55, K55, N80, C90, T95, C95, P110
Thread types: NU, EU, NUE, EUE, and IJ
Lengths:
API 5CT Tubing | Range 1 | Range 2 | Range 3 |
---|---|---|---|
6.10~7.32 | 8.53~9.75 | 11.58~12.80 |
Dimension:
Label | D Outside diameter (mm) | Wall thickness (mm) | C Type of end-finish | |||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
1 | 2 | |||||||||||
NU T&C | EU T&C | IJ | ||||||||||
H40 | J55 | L80 | N80 1Q | C90 | T95 | P110 | ||||||
1 | 2 | 3 | 4 | 5 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 |
1.9 | 2.75 | 2.9 | 2.76 | 48.26 | 3.68 | PNUI | PNUI | PNUI | PNUI | PNUI | PNUI | - |
1.9 | 3.65 | 3.73 | - | 48.26 | 5.08 | PU | PU | PU | PU | PU | PU | PU |
1.9 | 4.42 | - | - | 48.26 | 6.35 | - | - | P | - | P | P | - |
2 3/8 | 4 | - | - | 60.32 | 4.24 | PU | PN | PN | PN | PN | PN | - |
2 3/8 | 4.6 | 4.7 | - | 60.32 | 4.83 | PNU | PNU | PNU | PNU | PNU | PNU | PNU |
2 3/8 | 5.8 | 5.95 | - | 60.32 | 6.45 | - | - | PNU | PNU | PNU | PNU | PNU |
2 3/8 | 6.6 | - | - | 60.32 | 7.49 | - | - | P | - | P | P | - |
2 3/8 | 7.35 | 7.45 | - | 60.32 | 8.53 | - | - | PU | - | PU | PU | - |
2 7/8 | 6.4 | 6.5 | - | 73.02 | 5.51 | PNU | PNU | PNU | PNU | PNU | PNU | PNU |
2 7/8 | 7.8 | 7.9 | - | 73.02 | 7.01 | - | - | PNU | PNU | PNU | PNU | PNU |
2 7/8 | 8.6 | 8.7 | - | 73.02 | 7.82 | - | - | PNU | PNU | PNU | PNU | PNU |
2 7/8 | 9.35 | 9.45 | - | 73.02 | 8.64 | - | - | PU | - | PU | PU | - |
2 7/8 | 10.5 | - | - | 73.02 | 9.96 | - | - | P | - | P | P | - |
3 1/2 | 7.7 | - | - | 88.9 | 5.49 | PN | PN | PN | PN | PN | PN | - |
3 1/2 | 9.2 | 9.3 | - | 88.9 | 6.45 | PNU | PNU | PNU | PNU | PNU | PNU | PNU |
3 1/2 | 10.2 | - | - | 88.9 | 7.34 | PN | PN | PN | PN | PN | PN | - |
3 1/2 | 12.7 | 12.95 | - | 88.9 | 9.52 | - | - | PNU | PNU | PNU | PNU | PNU |
3 1/2 | 14.3 | - | - | 88.9 | 10.92 | - | - | P | - | P | P | - |
3 1/2 | 15.5 | - | - | 88.9 | 12.09 | - | - | P | - | P | P | - |
4 | 9.5 | - | - | 101.6 | 5.74 | PN | PN | PN | PN | PN | PN | - |
4 | 10.7 | 11 | - | 101.6 | 6.65 | PU | PU | PU | PU | PU | PU | - |
4 | 13.2 | - | - | 101.6 | 8.38 | - | - | P | - | P | P | - |
4 | 16.1 | - | - | 101.6 | 10.54 | - | - | P | - | P | P | - |
4 1/2 | 12.6 | 12.75 | - | 114.3 | 6.88 | PNU | PNU | PNU | PNU | PNU | PNU | - |
4 1/2 | 15.2 | - | - | 114.3 | 8.56 | - | - | P | - | P | P | - |
